In-stock waterproof straight-through connector for outdoor lighting electronic terminal blocks with screw-locking wires and waterproof connectors

Description

In-stock waterproof straight-through connector for outdoor lighting electronic terminal blocks with screw-locking wires and waterproof connectors

:Spot direct waterproof connector, outdoor lighting electronic terminal, screw lock wire, waterproof wire connector

Model: EW-M16

Number of Pins: 2/3

Voltage: 450V

Current: 17.5A

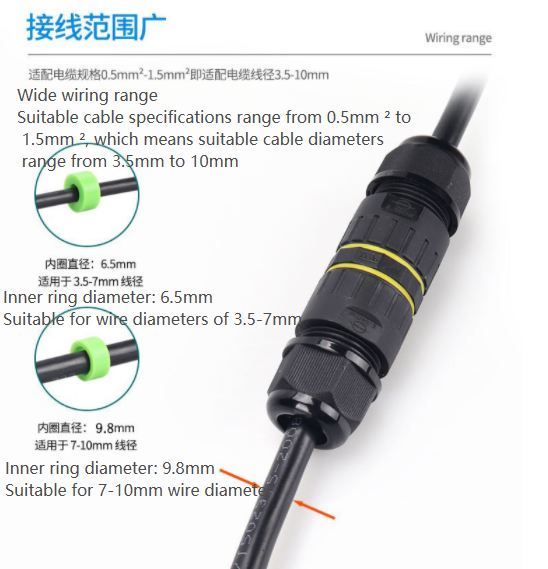

Wire Width: 3.5-10mm

Wire Width: 0.5mm²-1.5mm²

Ambient Temperature: -40°C-105°C

Terminal Blocks: Nickel-plated brass

Waterproof O-ring: Silicone rubber/Nitrile rubber

Casing Material: Nylon PA66

Certifications: ENEC, CE, CB, UKCA, SAA, ETL, ROHS



Pic：

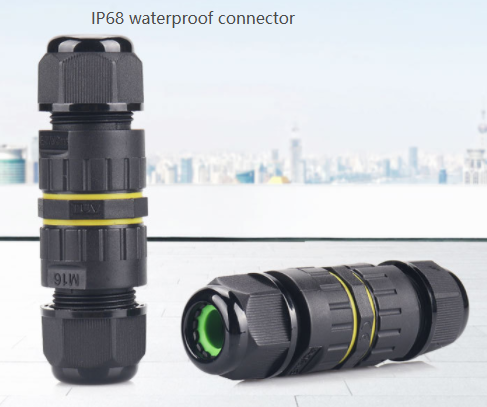

IP68 waterproof,
Long service life
security guarantee
Strong sealing performance
Easy to operate
Precision Craftsmanship

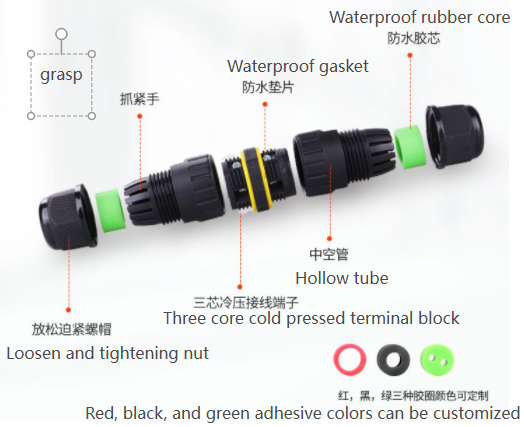

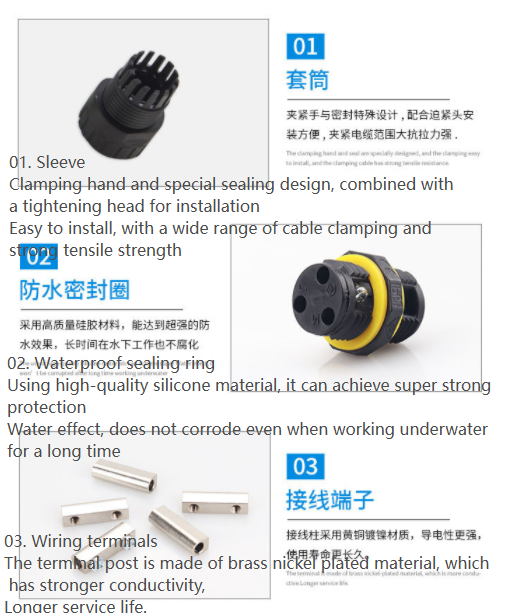

1. Sleeve

Clamping hand and special sealing design, combined with a tightening head for installation

Easy to install, with a wide range of cable clamping and strong tensile strength

2. Waterproof sealing ring

Using high-quality silicone material, it can achieve super strong protection

Water effect, does not corrode even when working underwater for a long time

3. Wiring terminals

The terminal post is made of brass nickel plated material, which has stronger conductivity,

Longer service life.
