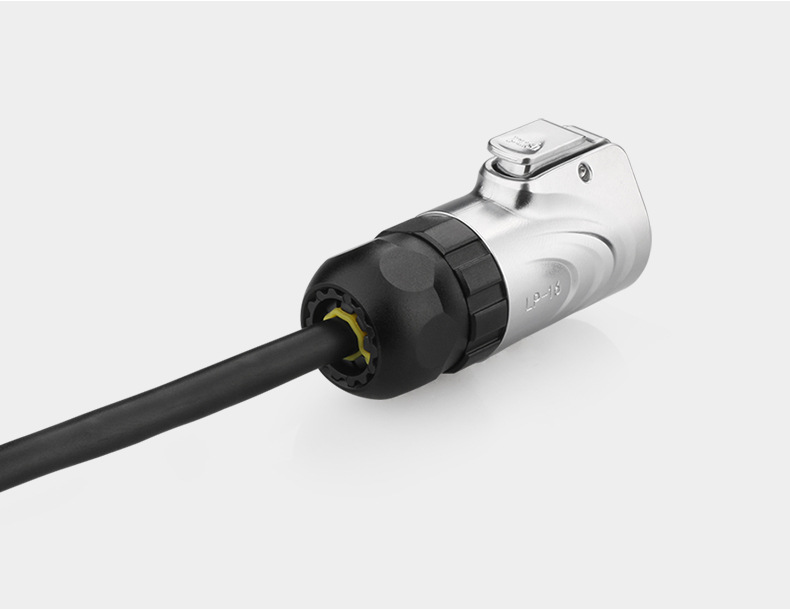

M16 all-metal circular waterproof connector 2-9 pin industrial-grade power supply aviation-grade plug and socket

Description

M16 all-metal circular waterproof connector 2-9 pin industrial-grade power supply aviation-grade plug and socket：M16 Full Metal Circular Waterproof Connector 2-9 Core Industrial Grade Power Aviation Plugs and sockets

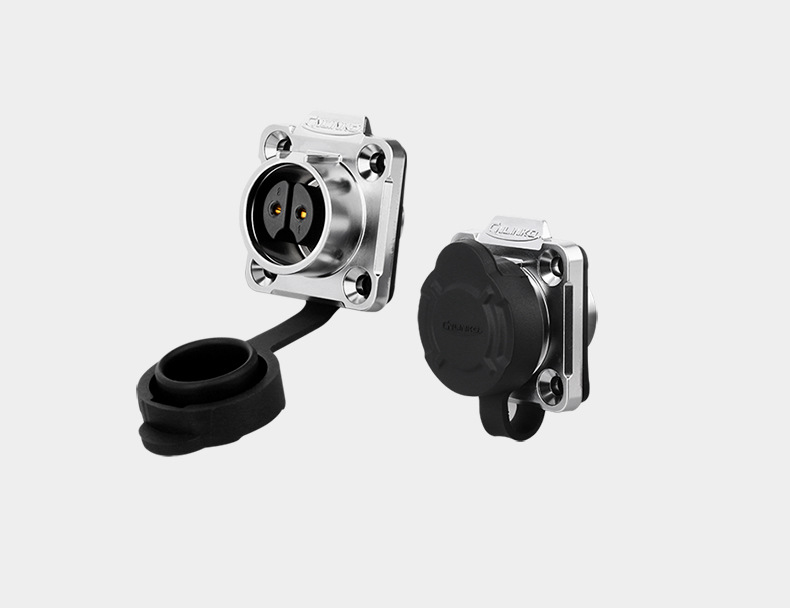

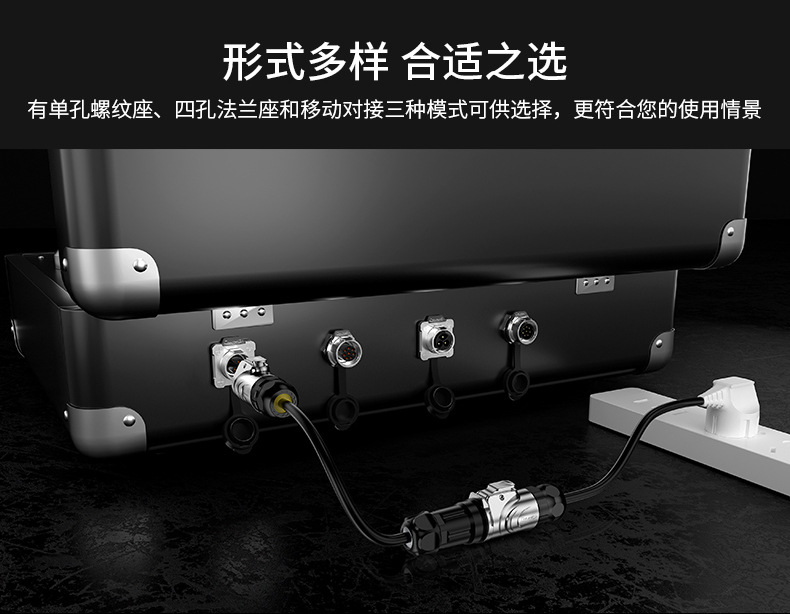

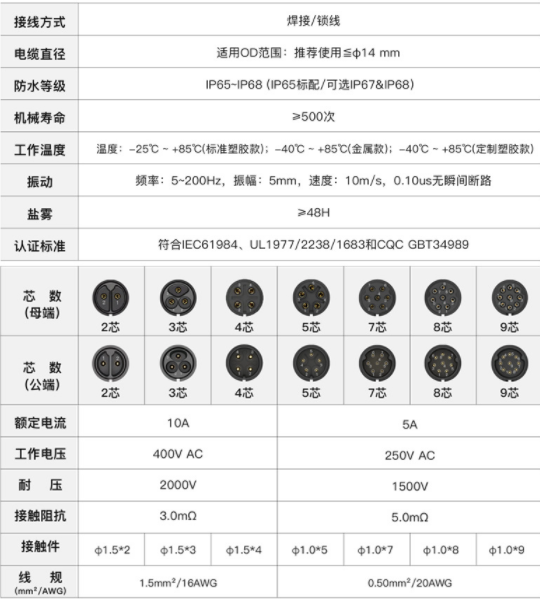

Industrial Connector Technical Specifications

Wiring Method: Solder / Crimp

Recommended Cable OD: ≤ Φ14mm

Ingress Protection (IP) Rating: IP65-IP68 (IP65 Standard / IP67 & IP68 Optional)

Mechanical Life: ≥ 500 cycles

Operating Temperature: -25℃ ~ +85℃ (Standard Plastic) / -40℃ ~ +85℃ (Metal) / -40℃ ~ +85℃ (Custom Plastic)

Vibration Resistance: Frequency: 5~200Hz, Amplitude: 5mm, Acceleration: 10m/s², 0.10ms No Interruption

Salt Spray Test: ≥ 48 Hours

Certification Standards: GB15032.15.2015, Compliant with IEC61984, UL1977/2238, and CQC GBT34989

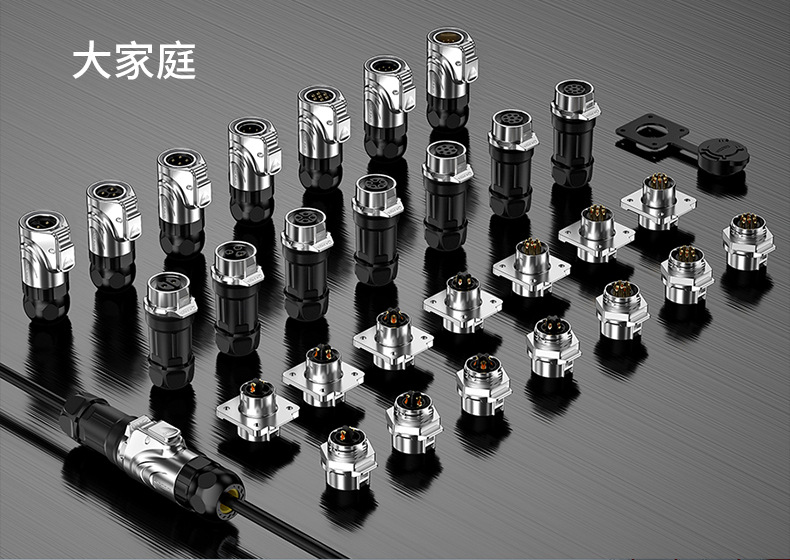

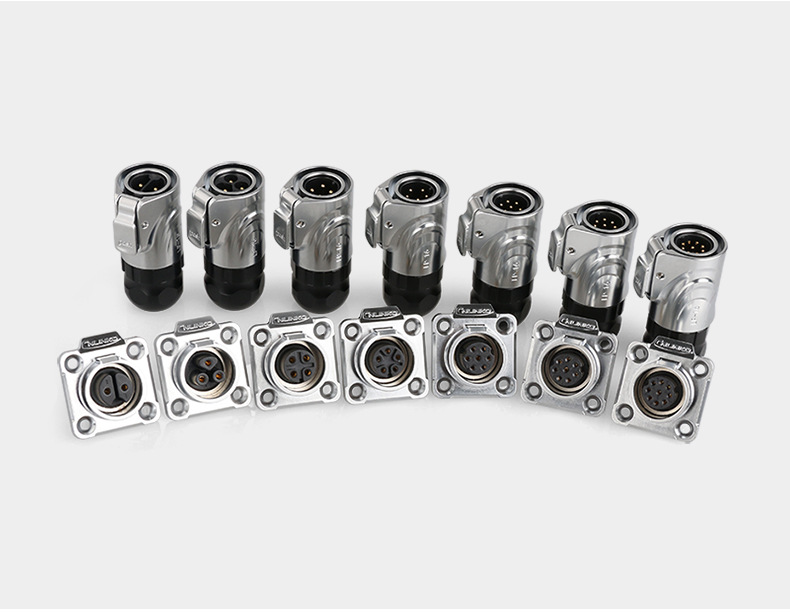

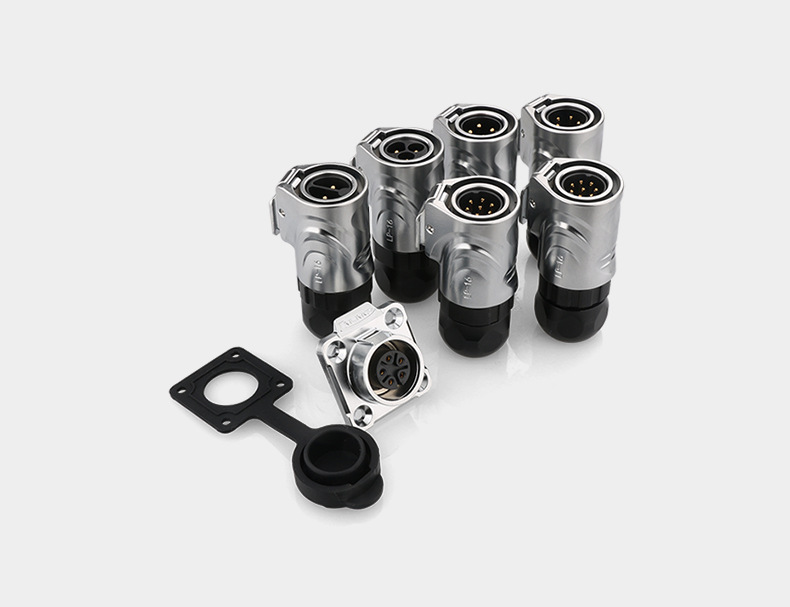

Number of Cores (Socket) 2 Cores 3 Cores 4 Cores 5 Cores 7 Cores 8 Cores 9 Cores

Number of Cores (Plug) 2 Cores 3 Cores 4 Cores 5 Cores 7 Cores 8 Cores 9 Cores

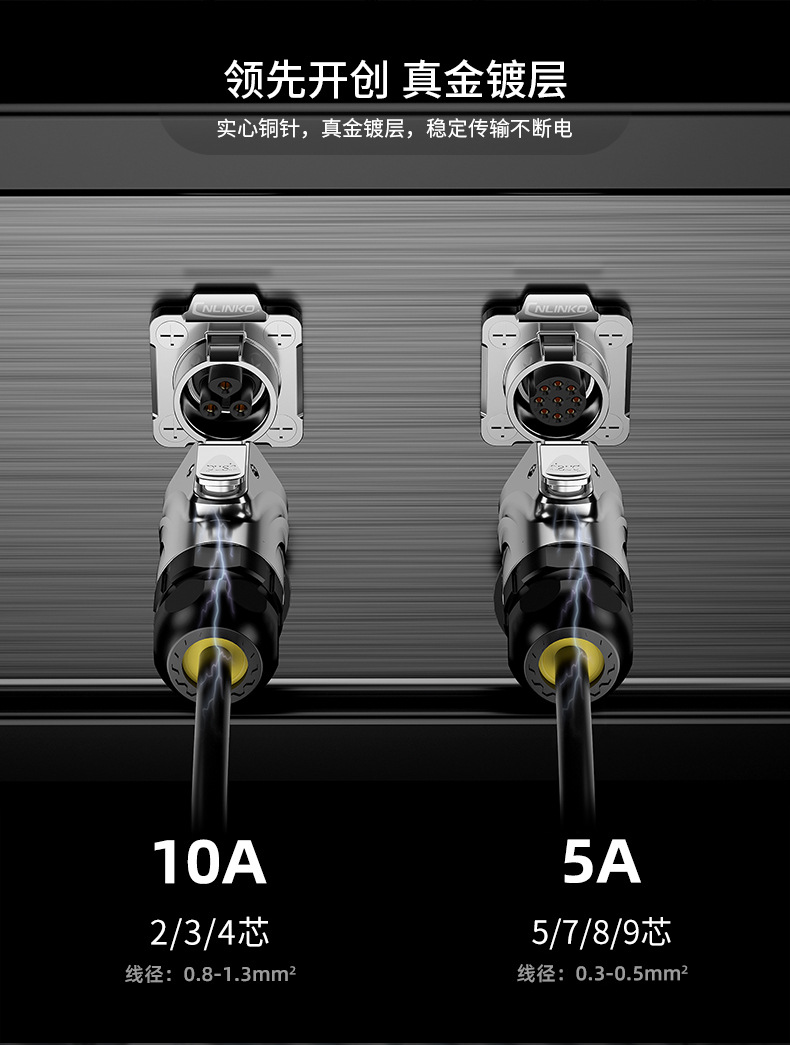

Rated Current:10A / 5A;

Working Voltage:400VAC / 250VAC;

Withstanding Voltage:2000V / 1500V;

Contact Resistance:≤ 3.0mΩ / ≤ 5.0mΩ;

Contact Size:Ø1.5×2 Ø1.5×3 Ø1.5×4 Ø1.0×5 Ø1.0×7 Ø1.0×8 Ø1.0×9

Applicable Wire Gauge:1.5mm² / 16AWG /0.50mm² / 20AWG

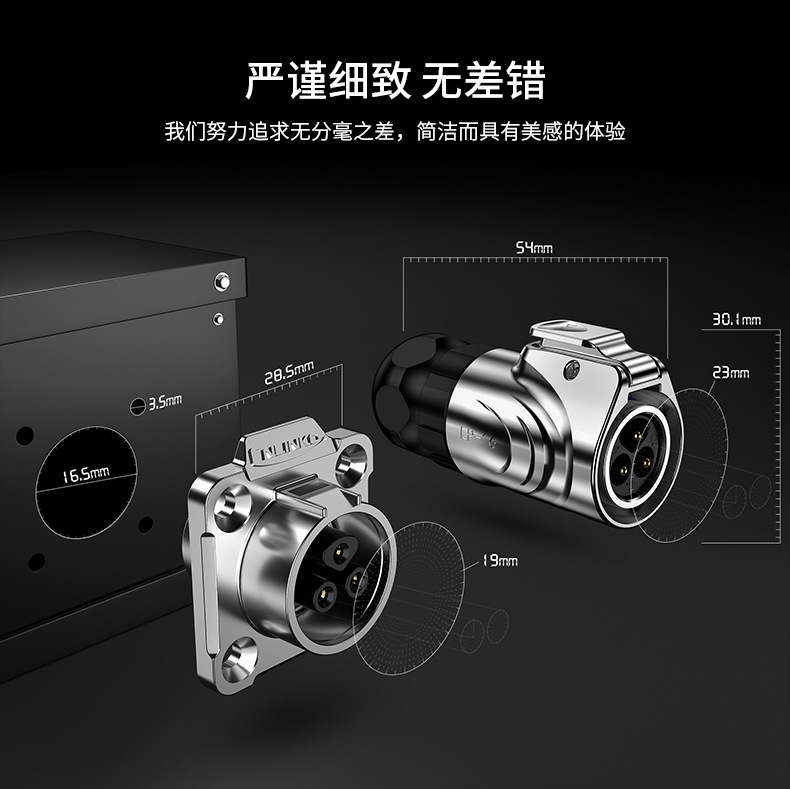

Pic：

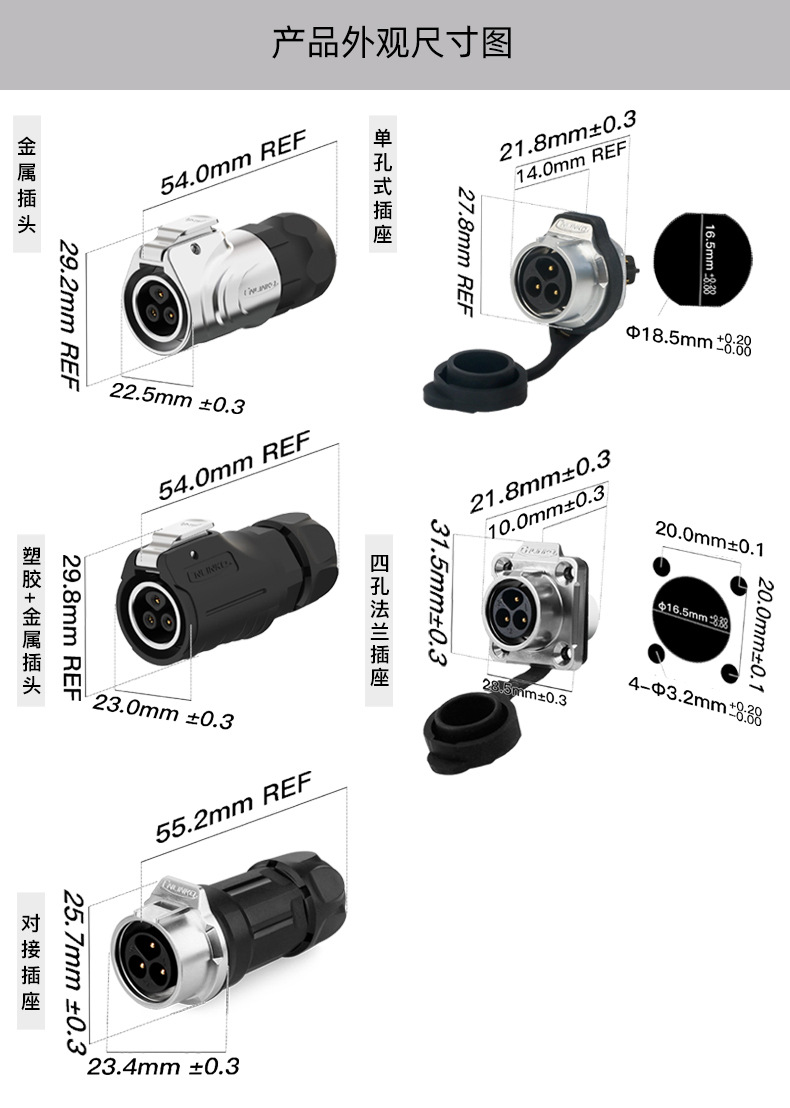

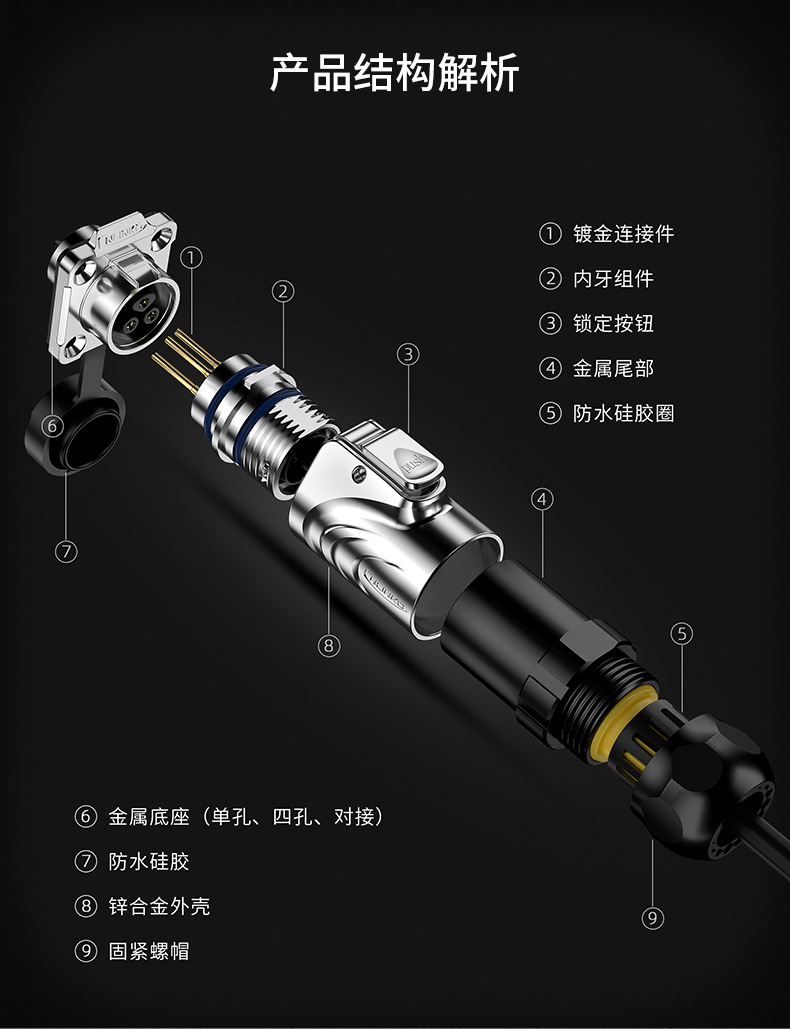

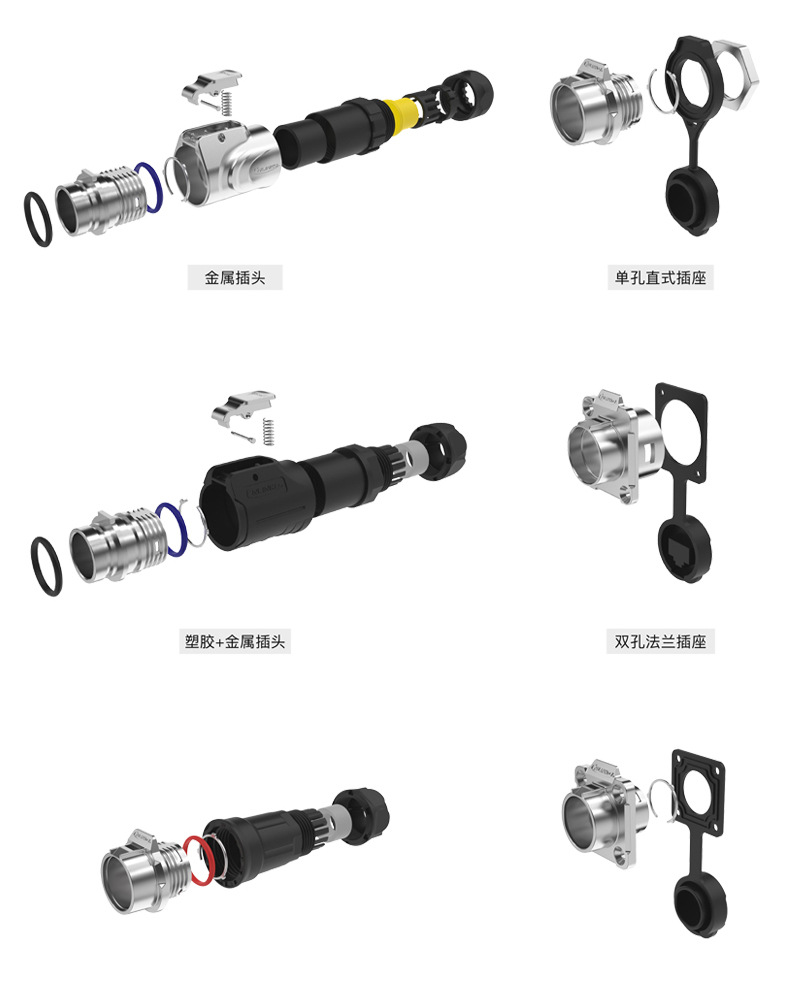

1. Gold-plated connector
2. Internal thread assembly
3. Locking button
4. Metal tail
5. Waterproof silicone ring
6. Metal base (single-hole, four-hole, docking)
7. Waterproof silicone
8. Zinc alloy housing
9. Fastening nut
